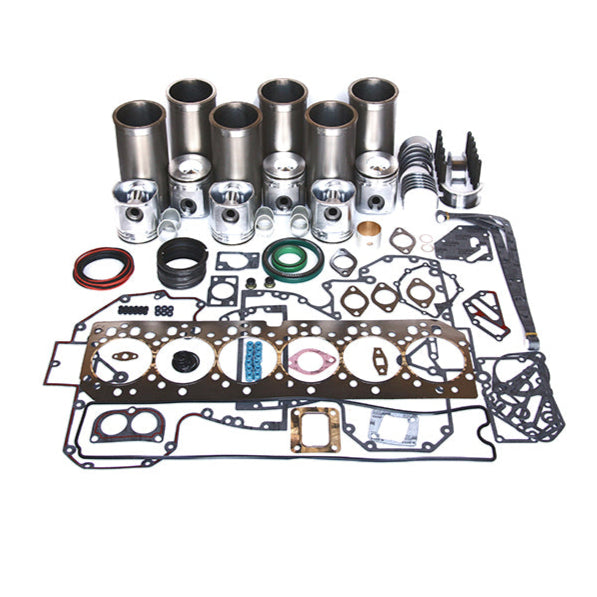

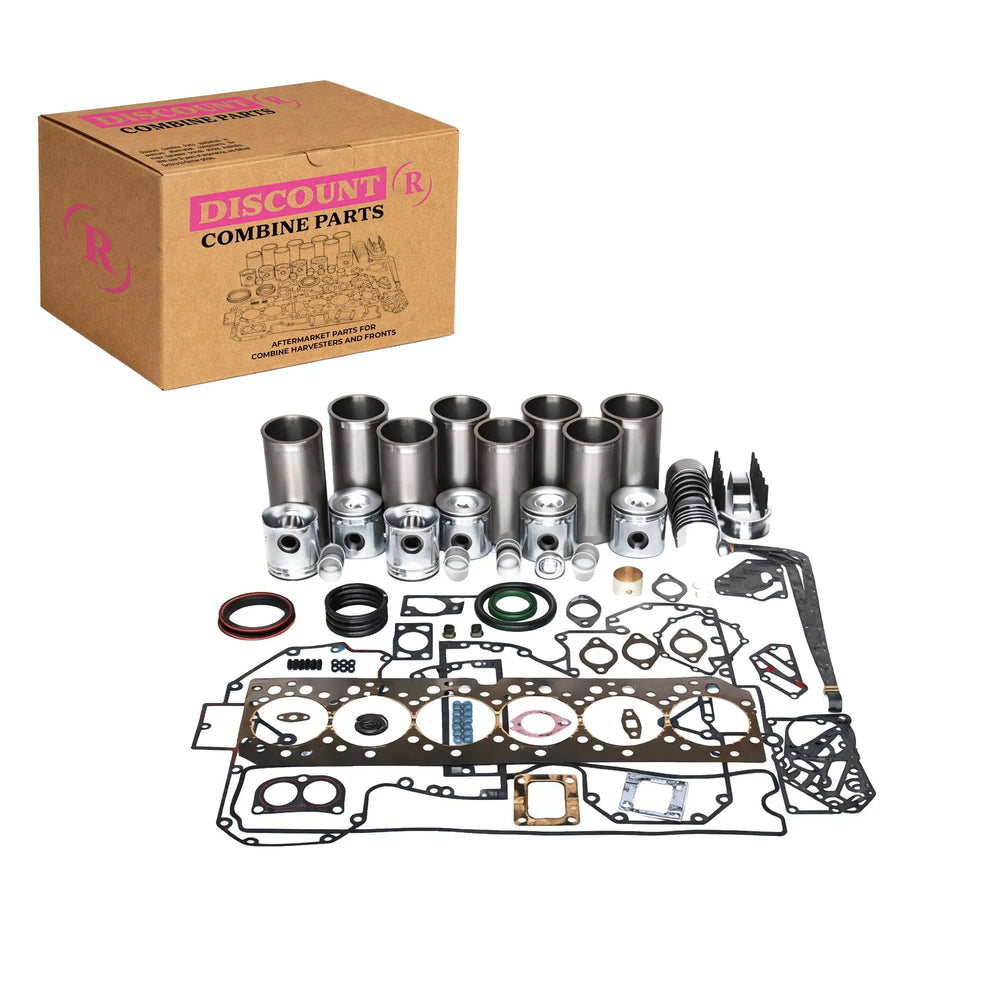

John Deere 8.1L Engine Overhaul Kit, H, PT, Standard Piston, T1 - OK504201 (Aftermarket)
John Deere 8.1L Engine Overhaul Kit, H, PT, Standard Piston, T1 - OK504201 (Aftermarket)
Couldn't load pickup availability
John Deere 8.1L Engine Overhaul Kit, H, PT, Standard Piston, T1
|
Spec |
Value |
|
Bore |
4.56 inch / 116 mm |
|
Pin |
1.8742 inch / (+/- .0002) = 47 mm |
|
Kit OEM^ |
OK504201 |
Kit Inclusions:
| Part# | Part Description | Qty |
|
RE57187 |
6081 Gasket Overhaul Set T1 |
1 |
|
RE64509 |
6081 Standard Cylinder Liner Kit | 6 |
|
R525767 |
Standard 8.1 Conrod Bearing* | 6 |
|
RE529319 |
Standard 8.1 Main Bearing* |
6 |
|
RE529320 |
Standard 6.8 Thrust Bearing* | 1 |
|
R501035 |
6081 Connecting Capscrew Rod Bolts | 12 |
|
R74008 |
6081 Bushing Connecting Rod | 6 |
|
R87561 |
6081 Camshaft Bushing | 1 |
| R82007 | Camshaft Cup Plug | 1 |
| AR49025 | Front Crankshaft Seal | 1 |
| RE520036 | Rear Crankshaft Seal | 1 |
* Kit shipped with standard bearings. Please select correct bearing size when adding to cart.
Compatible With John Deere Equipment:
|
Type |
Model Number |
|
Engines |
6081AF001, 6081AN001, 6081AT001, 6081AT002, 6081ATJ01, 6081ATJ02, 6081ATJ03, 6081HDW01, 6081HDW03, 6081HDW04, 6081HDW05, 6081HDW06, 6081HDW10, 6081HH001, 6081HH002, 6081HH008, 6081HH009, 6081HH020, 6081HH021, 6081HRW01, 6081HRW03, 6081HRW04, 6081HRW06, 6081HRW08, 6081HRW09, 6081HRW10, 6081HRW11, 6081HRW12, 6081HRW13, 6081HRW14, 6081HRW15, 6081HRW16, 6081HRW27, 6081HT001, 6081HT006, 6081TDW01, 6081TF001, 6081TRW01, 6081TRW02, 6081TRW03, 6081TRW04, 6081TRW05, 6081TRW06, 6081TRW07, 6081TRW08, 6081TRW09, 6081TRW10, 6081AJ61 |
|
John Deere Tractors |
7710, 7810, 8100, 8110, 8200, 8210, 8300, 8310, 8400, 9100, 8100T, 8110T, 8200T, 8210T, 8300T, 8310T, 8400T |
|
John Deere Harvesters |
1270D, 1470D, 753 GL |
|
John Deere Combines |
2256, 2258, 2264, 2266, 9510, 9550, 9510 SH, 9550 SH, 9560 WTS, 9560i WTS, 9580 WTS, 9580i WTS, 9640 WTS, 9640i WTS |
|
John Deere Skidders |
560 D, 660 D, 740 G, 748 G, 748 G-II, 748 G-III, 848 G |
|
John Deere Excavators |
370, 330C LC, 330 LC, 330 LCR, 370 C |
|
John Deere Wheel Loaders |
644 G, 644 H, 644 J, 724 J |
|
John Deere Forwarders |
1710 D |
| John Deere Cotton Pickers |
9970 |
|
John Deere Motor Graders |
770 C Series II, 770 C, 770 CH Series II, 770 CH, 770 D, 772 CH Series II, 772 CH, 772 D, 870 D, 872 D |
|
John Deere Feller Bunchers / Log Loaders |
608 L, 608 S, 753 G, 753 J, 753 JH, 759 G, 759 J, 759 JH, 850, 853 G, 900, 903 G, 950, 953 G, 535, 530 B, 3554 |
|
John Deere Crawler Dozers |
850 C, 850 C-II, 850 J |
^ OEM part numbers are for reference purpose only.
All pictures shown are for illustration purpose only. Actual product may vary.
