John Deere 6.8L Engine Overhaul Kit, H, PT, Standard Piston Marked RE509540 - RE66097 (Aftermarket)

John Deere 6.8L Engine Overhaul Kit, H, PT, Standard Piston Marked RE509540 - RE66097 (Aftermarket)

$4,100.00 AUD

$4,100.00 AUD

Sale Sold out

Taxes included.

Conrod Bearing Size Standard 0.011"

Main Bearing Size Standard 0.011"

Thrust Bearing Size Standard 0.011"

Quantity

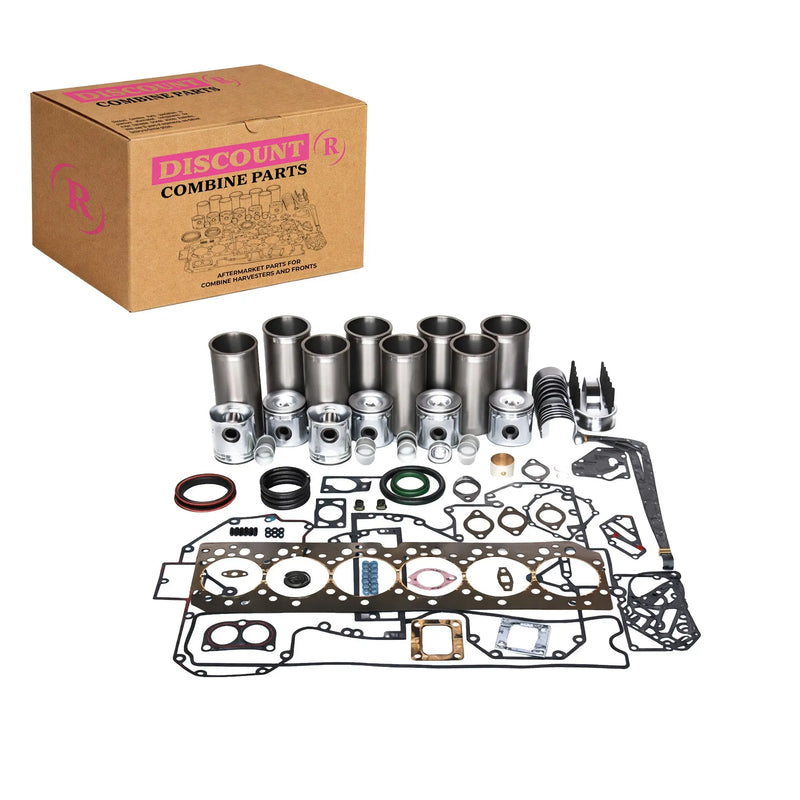

John Deere 6.8L Engine Overhaul Kit, H, PT, Standard Piston Marked RE509540

Spec	Value
Bore	4.19 inch / 106.5 mm
Pin	1.6250 inch / (+/- .0002) = 41mm
Kit OEM^	RE66097

Kit Inclusions:

Part#	Part Description	Qty
RE501456	6068 Gasket Overhaul Set	1
RE507850	6068 Cylinder Liner Kit	6
RE65908	Standard 6.8 Conrod Bearing*	6
RE65165	Standard 6.8 Main Bearing*	6
RE65168	Standard 6.8 Thrust Bearing*	1
R114083	6068 Connecting Capscrew Rod Bolts	12
R114082	6068 Bushing Connecting Rod 41mm	6
R119874	6068 Camshaft Bushing	1

* Kit shipped with standard bearings. Please select correct bearing size when adding to cart.

Compatible With John Deere Equipment:

Type	Model Number
Engines	6068HBM02, 6068HBM03, 6068HBM04, 6068HCQ01, 6068HCQ04, 6068HCQ06, 6068HCQ60, 6068HCQ61, 6068HDW50, 6068HDW53, 6068HDW55, 6068HDW56, 6068HDW59, 6068HDW60, 6068HF120, 6068HF150, 6068HF157, 6068HF158, 6068HF250, 6068HF252, 6068HF254, 6068HF258, 6068HF275, 6068HH050, 6068HH051, 6068HH052, 6068HL270, 6068HL271, 6068HL272, 6068HLA70, 6068HLA71, 6068HLA72, 6068HLA73, 6068HRT72, 6068HRW01, 6068HRW63, 6068HRW71, 6068HT050, 6068HT051, 6068HT052, 6068HT053, 6068HT054, 6068HT055, 6068HT056, 6068HT057, 6068HT059, 6068HYC53, 6068HZ050, 6068HZ060, 6068SFM50, 6068TBM01, 6068TBM02, 6068TBM03, 6068TCQ01, 6068TCQ02, 6068TCQ03, 6068TCQ11, 6068TCQ12, 6068TCQ13, 6068TCQ14, 6068TCQ18, 6068TCQ50, 6068TDW50, 6068TDW51, 6068TDW52, 6068TDW54, 6068TDW55, 6068TDW56, 6068TDW57, 6068TDW58, 6068TE050, 6068TE051, 6068TF157, 6068TF158, 6068TF220, 6068TF250, 6068TF252, 6068TF258, 6068TF275, 6068TFM50, 6068TFM75, 6068TFM76, 6068TJ07, 6068TJ11, 6068TJ12, 6068TJ14, 6068TJ31, 6068TJ32, 6068TJ61, 6068TJ62, 6068TL050, 6068TL051, 6068TL052, 6068TL053, 6068TL071, 6068TL072, 6068TL074, 6068TLA50, 6068TLA51, 6068TLA52, 6068TLA53, 6068TN050, 6068TN052, 6068TP051, 6068TP055, 6068TP056, 6068TP057, 6068TP058, 6068TRW50, 6068TRW51, 6068TRW52, 6068TRW53, 6068TRW54, 6068TRW70, 6068TRW73, 6068TT050, 6068TT051, 6068TT052, 6068TT053, 6068TT055, 6068TT057, 6068TT058, 6068TT061, 6068TT852, 6068TTJ50, 6068TTJ51, 6068TYC50, 6068TYC51, 6068TYC52, 6068TJ08, 6068TJ04, 6068HRW59, 6068HRW70, 6068HBM07
John Deere Tractors	6605, 6615, 6715, 7210, 7405, 7410, 7510, 7610, 7505, 7515, 7520, 7715, 7810, 7815, 4700, 9400, 4710, 4990, 9450, 4995, 6125J, 6515, 6130J, 6145J, 6610, 6165J, 6180J, 6620, 6910S, 6920S, 6810, 7185J, 6820, 7205J, 6910, 9470STS, 7220, SE6520, 7320, SE6620, SE6920, 7420, 740, 330
John Deere Combines	9410, 1165, 1170, 1175, 1450, 1470, 1550, 2254, 3518, 9540WTS, W210
John Deere Skidders	540G, 540GLL, 548G, 548GII, 548GIII, 640G, 640GII, 640GIII, 648G, 648GII, 648GIII
John Deere Excavators	200LC, 200CLC, 230CLC, 230LCR, 270CLC, 270LC, 360D, 460D, 690E
John Deere Wheel Loaders	544H, 544J, 624H, TC54H, TC62H
John Deere Log Loaders	2054, 624HLL, 2554, 335C, 430B, 435C, 437C, 544HLL

^ OEM part numbers are for reference purpose only.

All pictures shown are for illustration purpose only. Actual product may vary.
